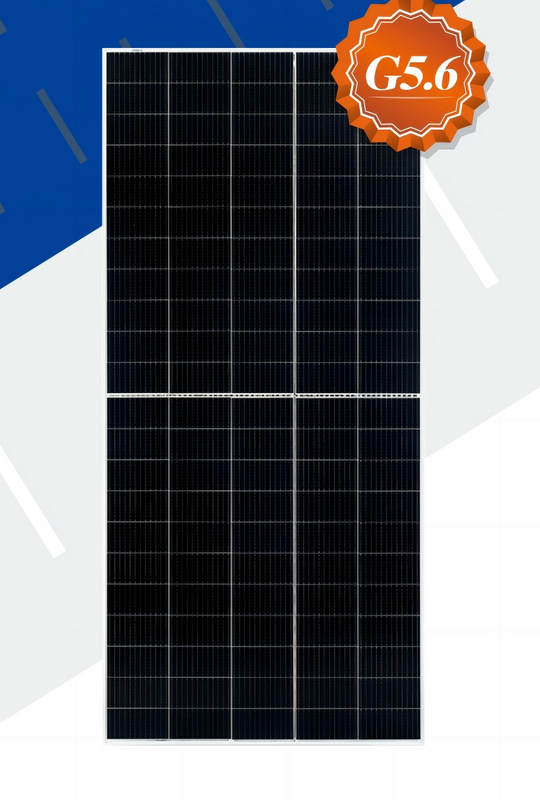

530W Monocrystalline PV Solar Panel

SKYLARK's 530W monocrystalline PV solar panel is a reliable and efficient solar energy solution. Its design ensures optimal performance for a variety of applications.

High Panel Efficiency

Achieve 21.2% efficiency for increased energy yield.

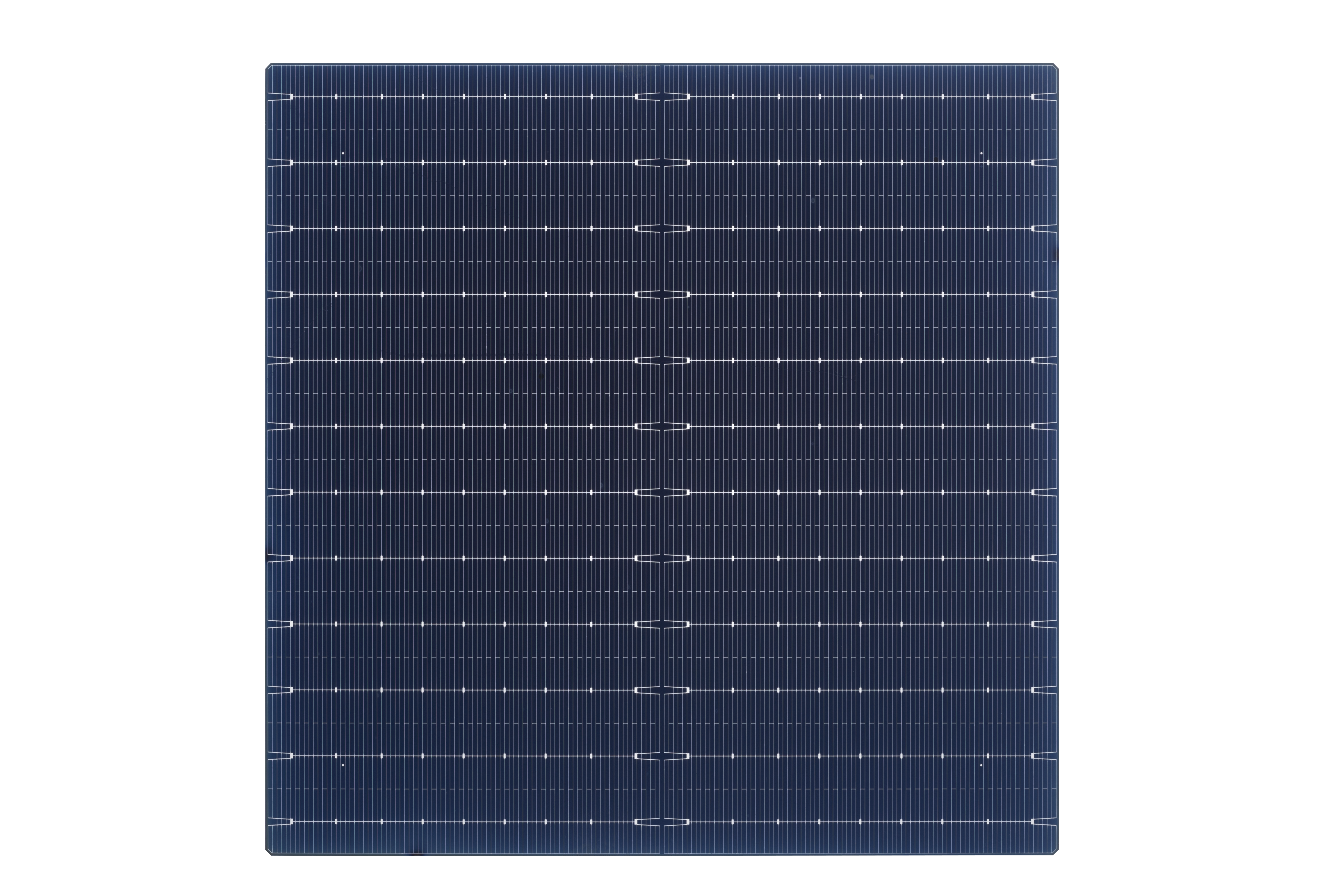

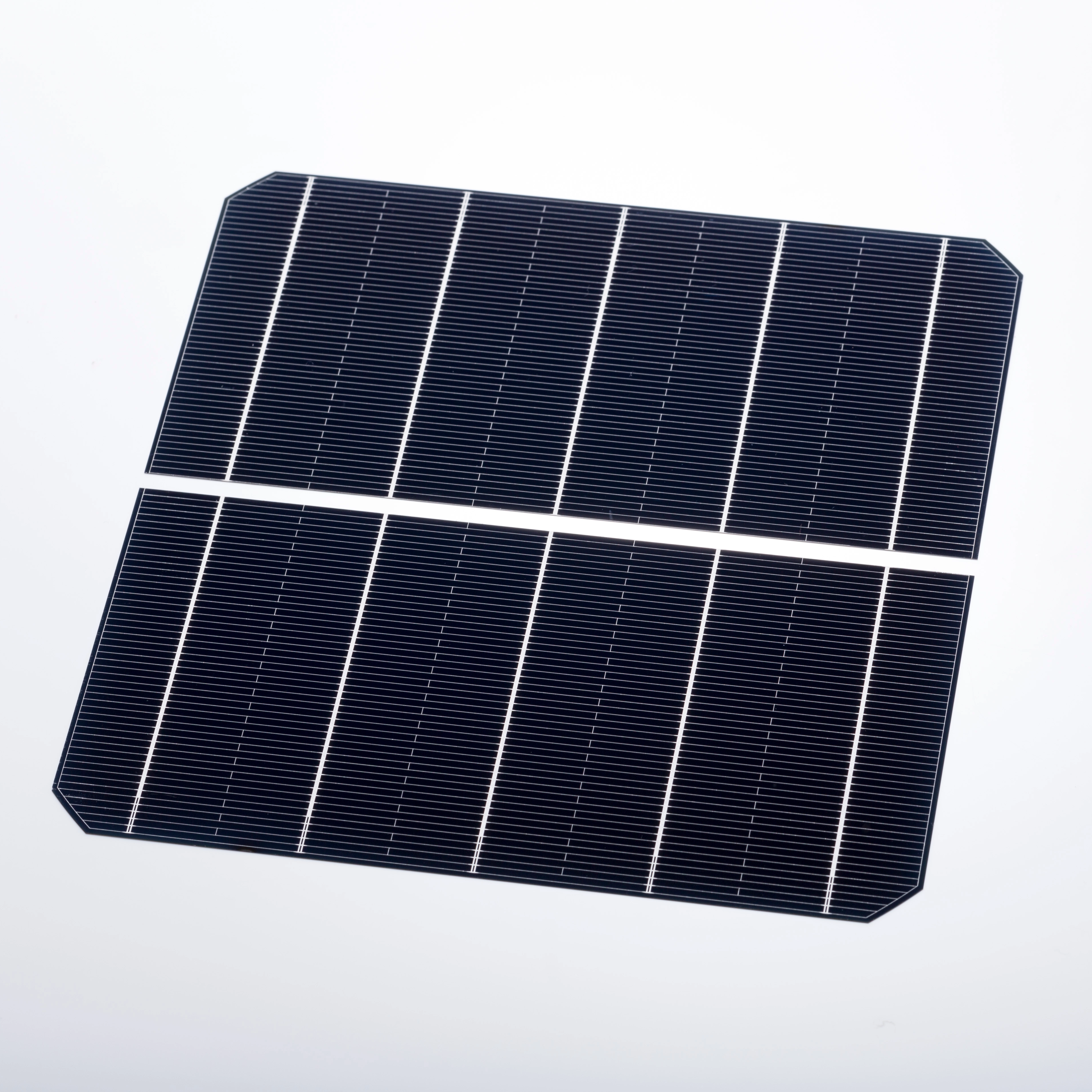

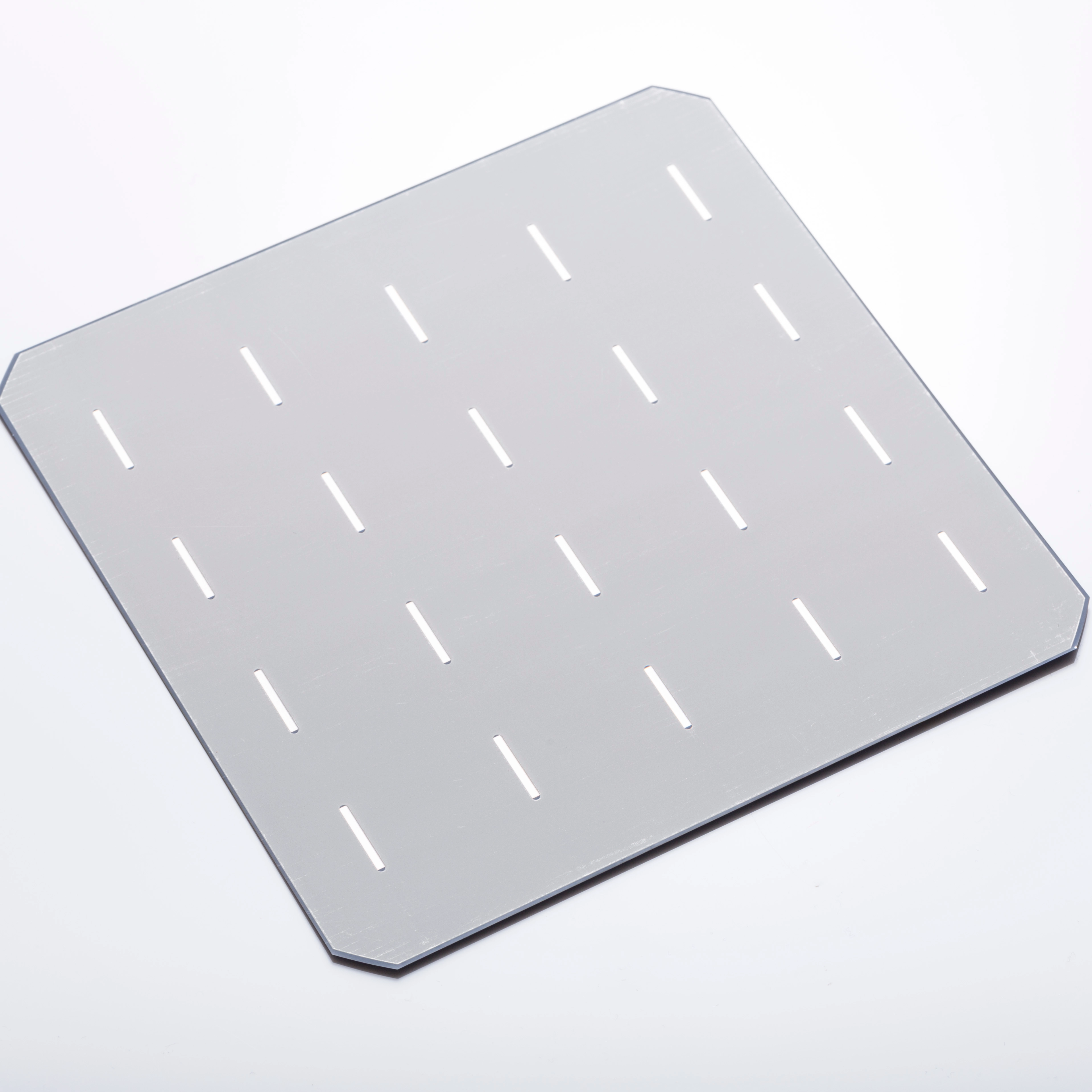

Monocrystalline Solar Cells

Adopt advanced monocrystalline silicon technology for higher output power.

Parameter	Value
Model NO.	SP-07
Condition	New
Material	Monocrystalline Silicon
Weight	29kg
Open Circuit Voltage (Voc)	38.46V
Maximum Power Voltage (Vmpp)	32.06V
Module Efficiency	21.20%
Substrate	White Back-Sheet
J-Box	Potted, IP68, 1500VDC, 3 Schottky Bypass Diodes
Specification	Different power available
Origin	Zhejiang, China
Production Capacity	1,000,000 PCS/Month
Application	Industrial

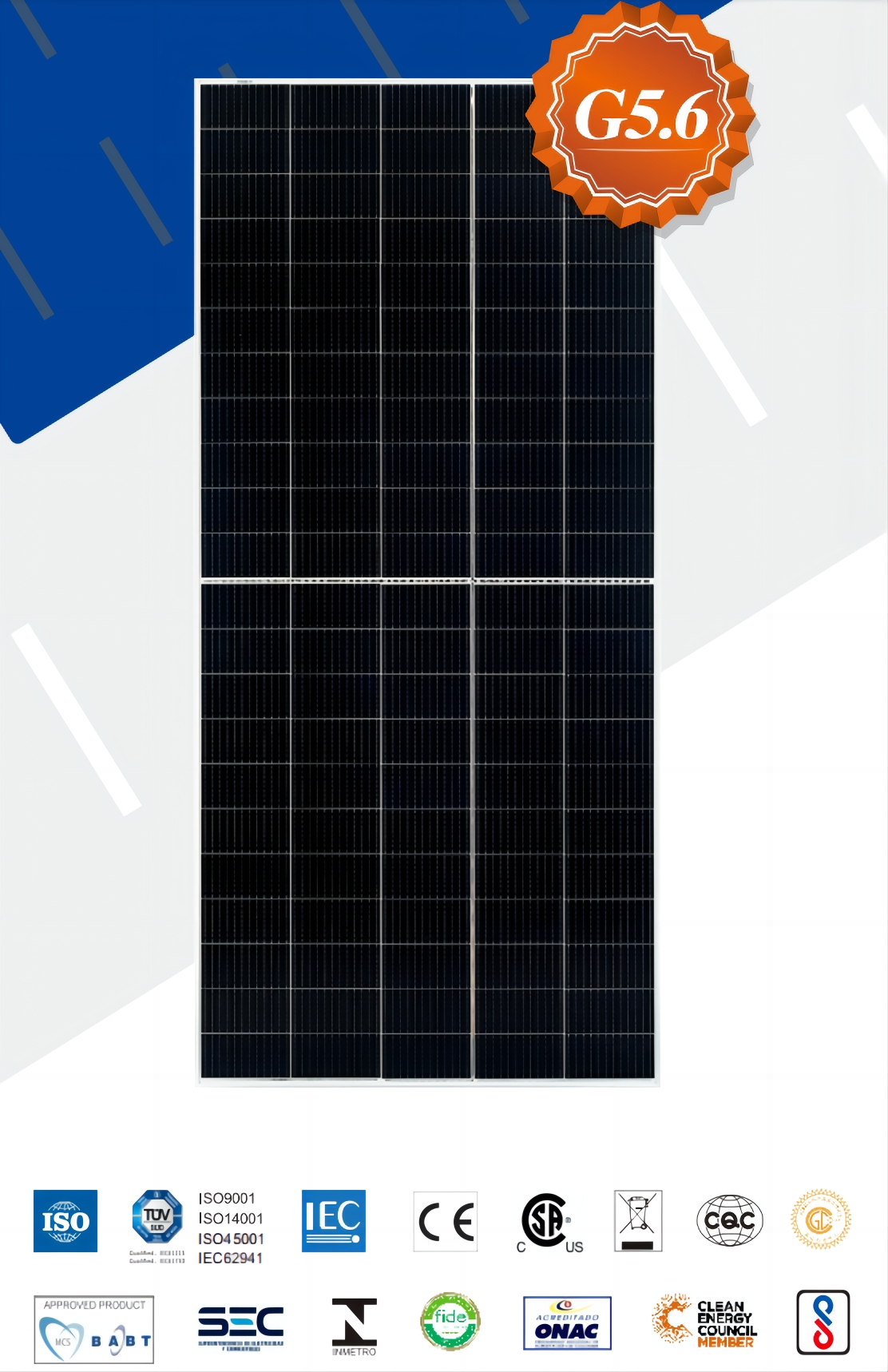

Certification	EST, ISO, CB, CE

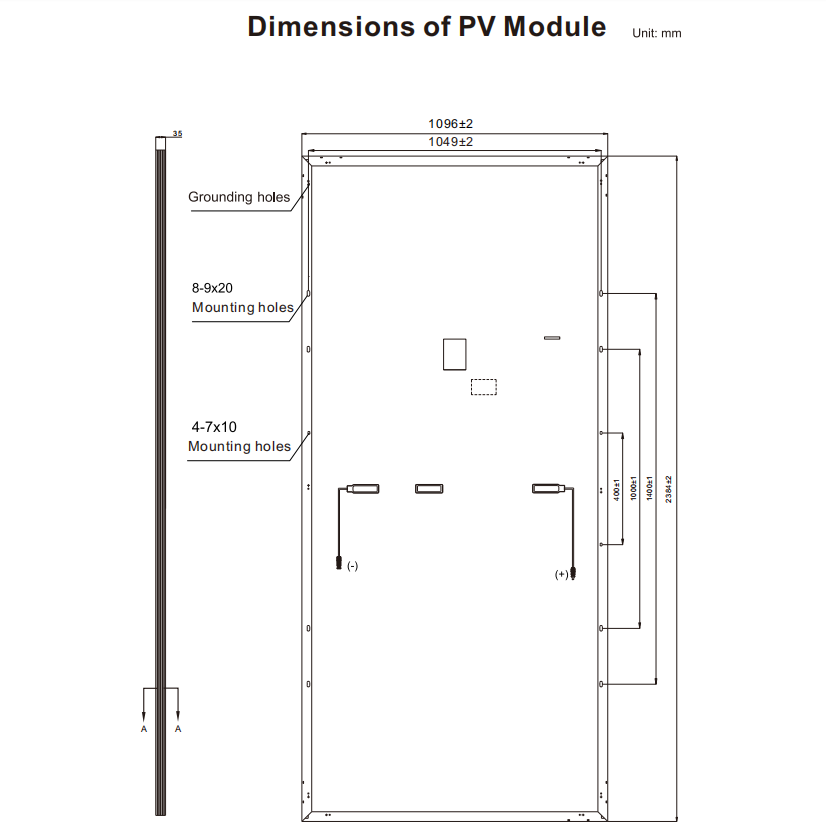

Size	2384×1096×35mm
Rated Power in Watts (Pmax)	555Wp
Short Circuit Current (Isc)	18.33A
Maximum Power Current (Impp)	17.32A
Superstrate	High Transmission, Low Iron, Tempered Arc Glass
Frame	Anodized Aluminum Alloy Type 6005-T6, Black
Transport Package	Carton
Trademark	Risen
HS Code	8541420000

Packaging and Delivery

Parameter	Value
Package Size	239.50cm × 112.00cm × 123.50cm
Package Gross Weight	945.000kg

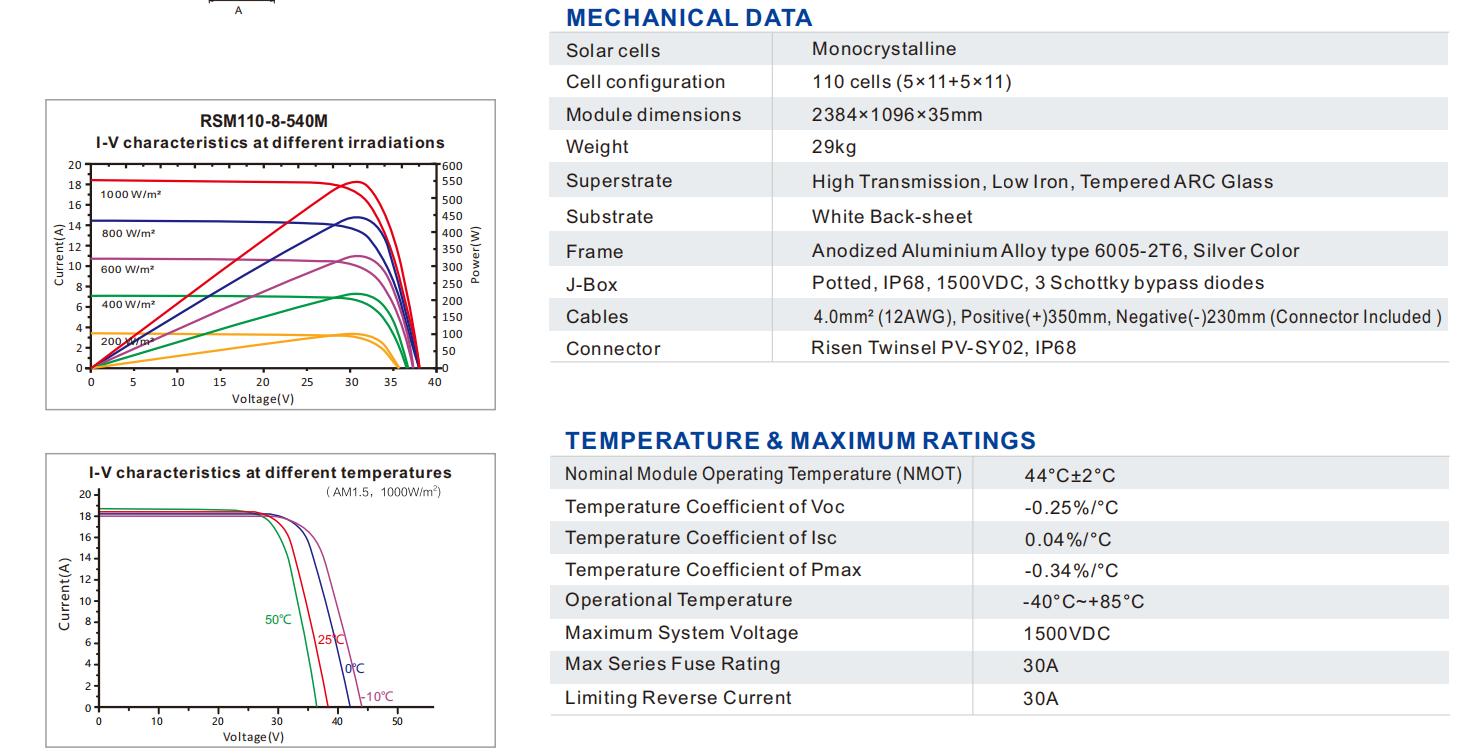

Performance Details

Model Number	530MB	535MB	540MB	545MB	550MB	555MB
Rated Power (Pmax Wp)	530	535	540	545	550	555
Open Circuit Voltage (Voc V)	37.38	37.58	37.78	38.02	38.24	38.46
Short Circuit Current (Isc A)	18.08	18.13	18.18	18.23	18.28	18.33
Maximum Power Voltage (Vmpp V)	31.06	31.26	31.46	31.66	31.86	32.06
Maximum Power Current (Impp A)	17.07	17.12	17.17	17.22	17.27	17.32
Module Efficiency (%)	20.3	20.5	20.7	20.9	21	21.2
STC	Irradiance 1000 W/m², Cell Temperature 25°C, Air Mass AM1.5 according to EN 60904-3

Features of 530W Monocrystalline PV Solar Panel

High-quality solar panel

Uses monocrystalline silicon for high efficiency and durability.

Wide power range

Provides power options from 3KW to 30KW to meet different energy needs.

Advanced MPPT controller

Maximizes energy harvesting while minimizing energy loss.

Long-lasting battery options

Supports lead-acid batteries and lithium batteries for flexible use.

Efficient energy conversion

Achieves 21.2% panel efficiency for optimal energy output.

Reliable electrical design

Rated at 555W, stable voltage and current performance.

Durable aluminum frame

Adopts anodized aluminum alloy frame for outdoor use.

Waterproof junction box

Includes an IP68-rated junction box for dust and water resistance.

Flexible installation options

Available in PERC, all-black, BIPV, flexible and foldable models.

Advantages of 530W Monocrystalline Photovoltaic Solar Panel

High Efficiency

Converts sunlight into energy with 21.2% efficiency for maximum output.

Durable Design

Uses anodized aluminum and IP68-rated junction box for outdoor conditions.

Versatile Power Range

Provides 3KW to 30KW options to meet a variety of energy needs.

Energy Optimization

Advanced MPPT controller reduces energy loss and increases collection rate.

Flexible Battery Support

Compatible with lead-acid and lithium batteries to meet different needs.

Small and Lightweight

Sizes 2384×1096×35mm and weighs 28.6kg, making installation more convenient.

Sustainable Energy

Provides renewable energy for residential and commercial applications.

Applications of 530W Monocrystalline Silicon Photovoltaic Solar Panels

Residential Uses

Provide efficient and reliable solar energy for homes.

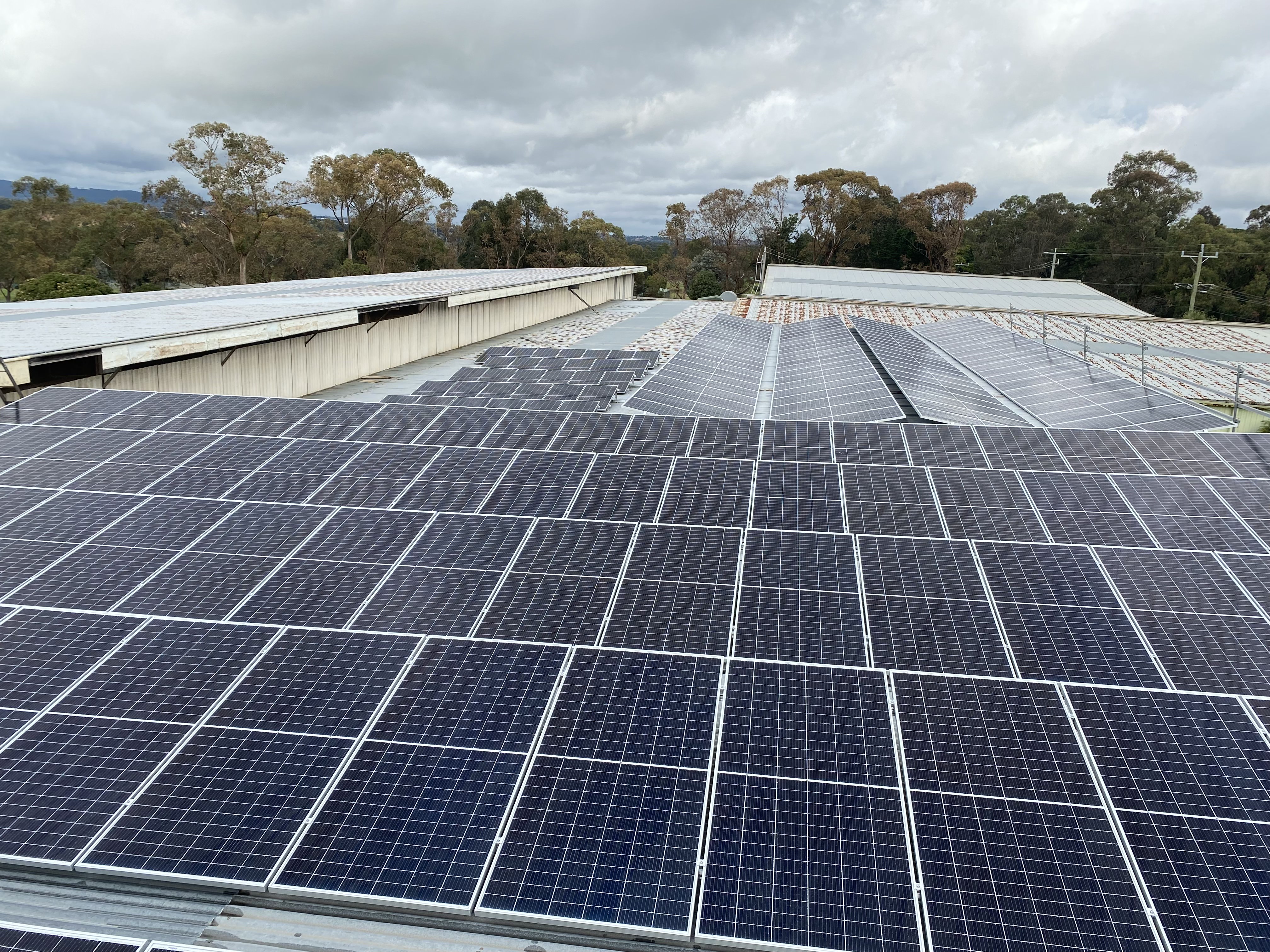

Commercial Facilities

Support the energy needs of businesses and office buildings.

Remote Areas

Off-grid energy solutions for rural or remote areas.

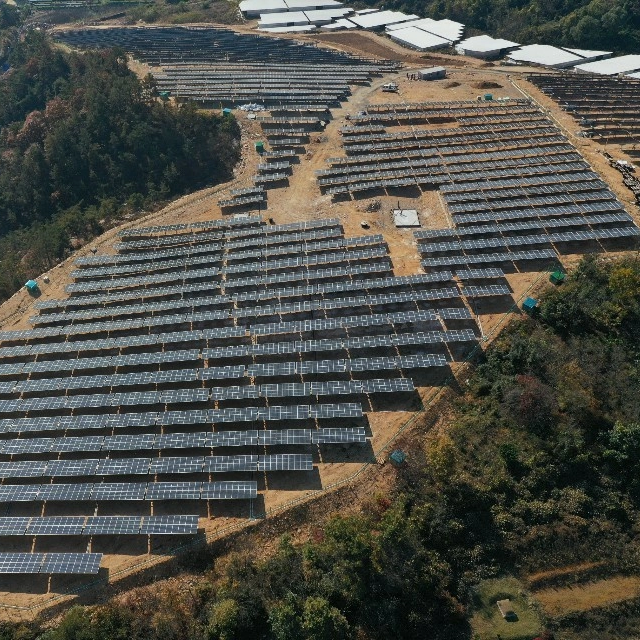

Solar Farms

Suitable for large-scale solar production projects.

Agricultural Operations

Provide power for irrigation systems and agricultural equipment.

Mobile Energy Systems

Suitable for caravans, RVs and portable power units.

BIPV Projects

Seamlessly integrated into building facades or roofs.

530W Monocrystalline Silicon Photovoltaic Solar Panel FAQs

1. What is the efficiency of the solar panel?

The efficiency of the panel is 21.2%.

2. What type of solar cell is used?

The panel uses monocrystalline silicon cells.

3. What is the power range available?

We offer power options from 3KW to 30KW.

4. What is the size of the solar panel?

The panel size is 2384×1096×35mm.

5. What type of battery is supported?

The panel supports lead-acid batteries and lithium batteries.
