Skylark Network is a leading Chinese manufacturer of Commercial OEM P-Type Solar Panel 132 Cells 650W PV Solar Plate. With years of experience in solar technology, they focus on providing high-quality solar panels tailored to industrial needs. Our panels are used in renewable energy, mobile power systems, and emergency power solutions. Contact us today to learn more!
Parameter | Value |
Model NO | SP-010 |
Condition | New |
Material | Monocrystalline Silicon |
Weight | 34kg |
Open Circuit Voltage - Voc | 46.15V |
Maximum Power Voltage - Vmpp | 38.48V |
Module Efficiency | 21.6% |
Substrate | White Back-Sheet |
J-Box | Potted, IP68, 1500VDC, 3 Schottky Bypass Diodes |

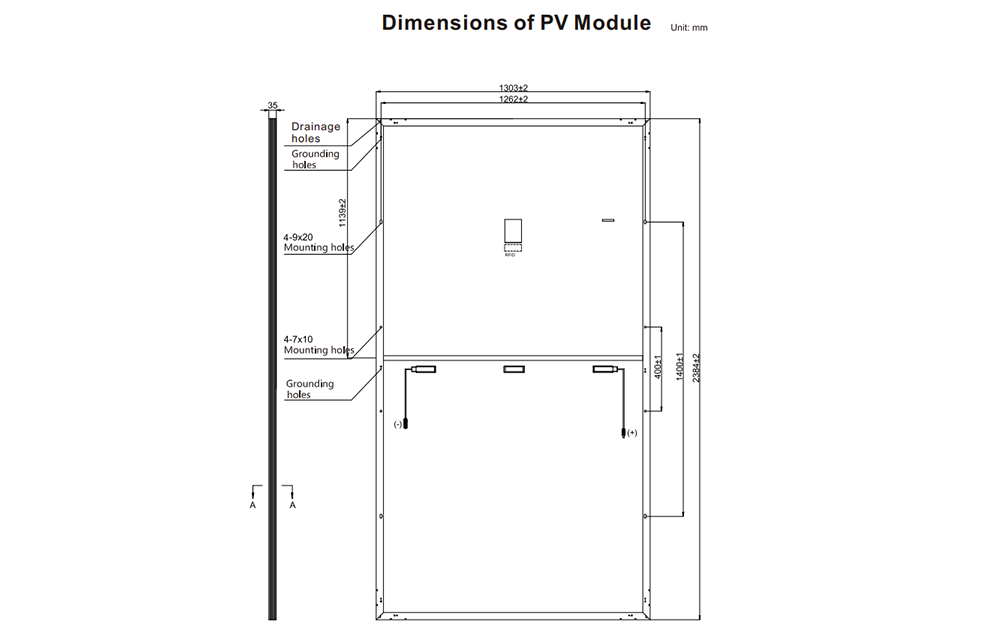

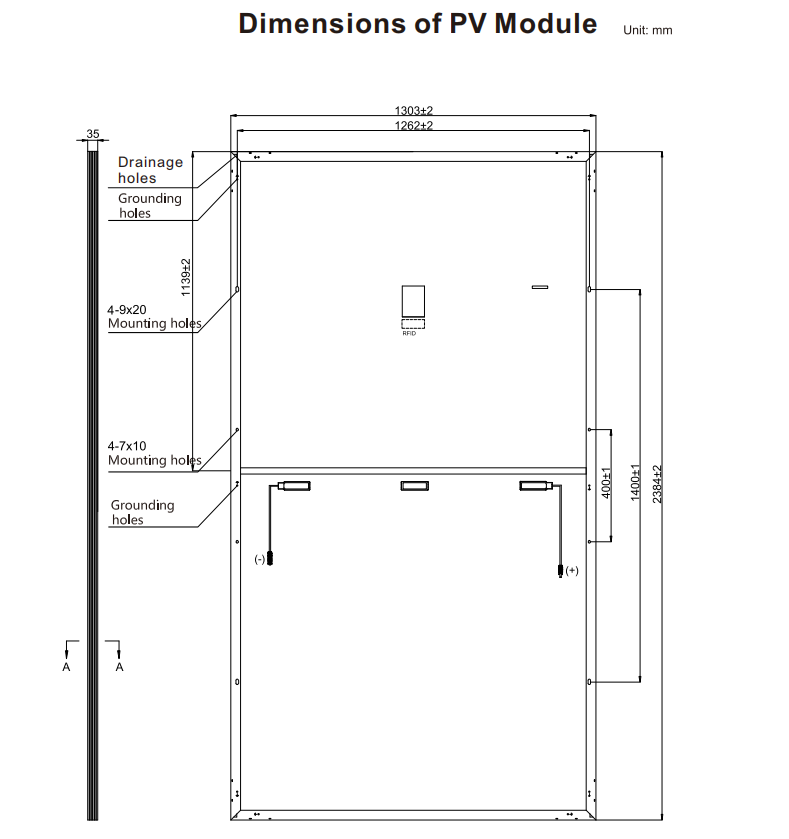

Size | 2384130335mm |
Rated Power in Watts - Pmax | 670wp |
Short Circuit Current - Isc | 18.43A |
Maximum Power Current - Impp | 17.42A |
Superstrate | High Transmission, Low Iron, Tempered Arc Glass |
Frame | Anodized Aluminium Alloy Type6005-2t6, Black |
Transport Package | Carton |
Certification | EST, ISO, CB, CE |
Trademark | Risen |
HS Code | 8541420000 |
Origin | Zhejiang, China |
Production Capacity | 1000000PCS/Month |
Specification | Different power available |

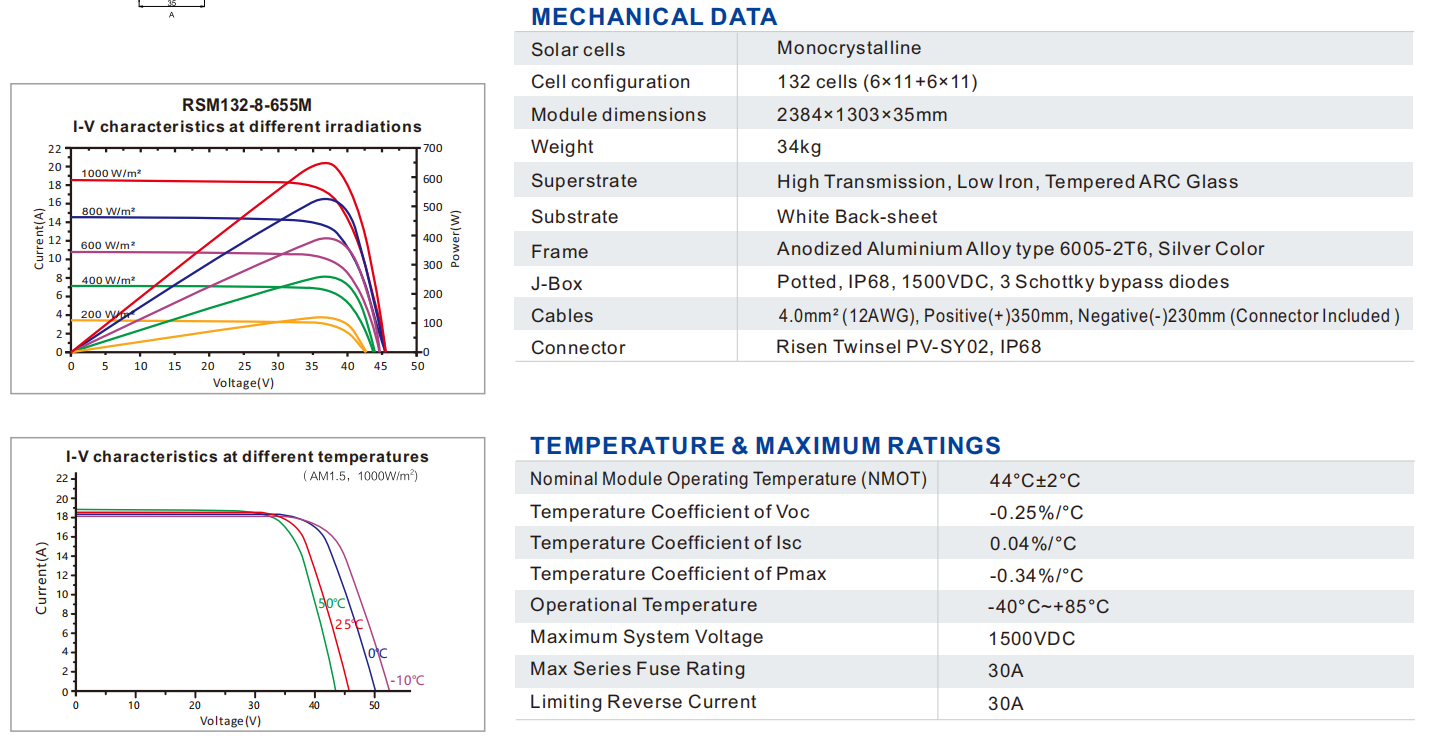

Model Number | RSM132-8-645MB | RSM132-8-650MB | RSM132-8-655MB | RSM132-8-660MB | RSM132-8-665MB | RSM132-8-670MB |
Rated Power in Watts-Pmax (Wp) | 645 | 650 | 655 | 660 | 665 | 670 |
Open Circuit Voltage-Voc (V) | 45.15 | 45.35 | 45.55 | 45.75 | 45.95 | 46.15 |
Short Circuit Current-Isc (A) | 18.18 | 18.23 | 18.28 | 18.33 | 18.38 | 18.43 |
Maximum Power Voltage-Vmpp (V) | 37.58 | 37.76 | 37.94 | 38.12 | 38.3 | 38.48 |
Maximum Power Current-Impp (A) | 17.17 | 17.22 | 17.27 | 17.32 | 17.37 | 17.42 |
Module Efficiency (%) | 20.8 | 20.9 | 21.0 | 21.2 | 21.4 | 21.6 |
STC | Irradiance 1000 W/m², Cell Temperature 25°C, Air Mass AM1.5 according to EN 60904-3 | |||||

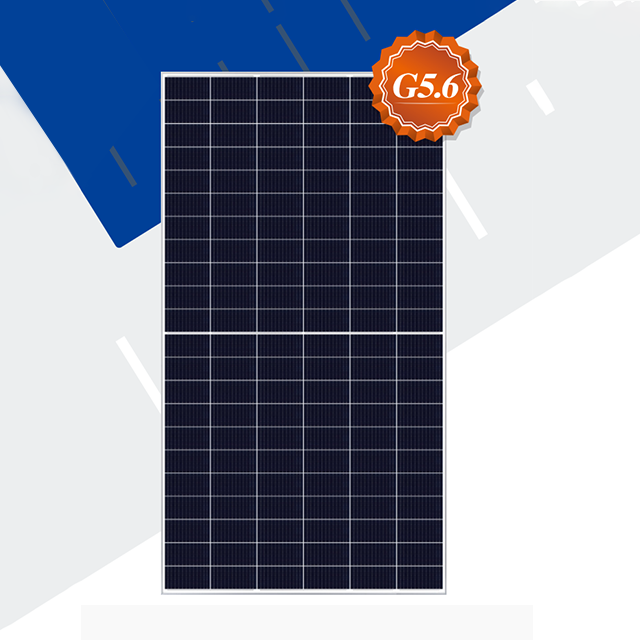

The Commercial OEM P-Type Solar Panel with 132 cells offers high-performance solar energy solutions. This 650W PV solar plate is designed for industrial use.
It is built with monocrystalline silicon for enhanced efficiency. The module features a high efficiency of up to 21.6%.
With an open circuit voltage of 46.15V, it ensures stable power output. The maximum power voltage is 38.48V.
The panel operates with a short circuit current of 18.43A. It can generate a maximum power current of 17.42A.
The panel is equipped with a durable aluminum alloy frame. The tempered arc glass ensures high transmission and low iron content.
The transport package is safely packed in a carton for easy delivery.
This product is manufactured in Zhejiang, China, with a production capacity of 1,000,000 units per month.
High Power and High Efficiency: The panel delivers 650W of power, ideal for high-energy devices. The P-type cell technology ensures efficient photovoltaic conversion.
Durability and Long Lifespan: Made from high-quality materials, it resists wind, water, and UV exposure. This makes it suitable for long-term outdoor use in harsh environments.
Lightweight and Easy to Install: With a frameless design and low weight, this panel is easy to transport and install. It is perfect for RVs, camping vehicles, and other mobile applications.
Good Low-Light Performance: The panel maintains high efficiency even in low light conditions, ensuring reliable energy production in cloudy or shaded environments.
Customization and Versatility: The panel supports OEM customization to meet specific customer needs. It is ideal for renewable energy vehicles, portable power sources, and emergency power applications.
Attractive Design: Featuring an all-black, frameless design, this panel is sleek and visually appealing, making it suitable for modern installations.
Eco-Friendly and Energy Saving: As a clean energy source, this panel reduces pollution and lowers energy costs, contributing to environmental sustainability.
Product Guarantee: The product comes with a warranty for quality assurance and reliability.
Supplier Details: Skylark Network is the manufacturer, offering high-quality and reliable solar solutions.
Packaging and Shipping: The panels are carefully packed in cartons for safe delivery and protection during shipping.
Delivery Time: Delivery is made within a specified timeframe, depending on order size and location.
After-Sales Service: Skylark Network provides customer support for any product-related issues or inquiries.
