| Quantity: | |
|---|---|

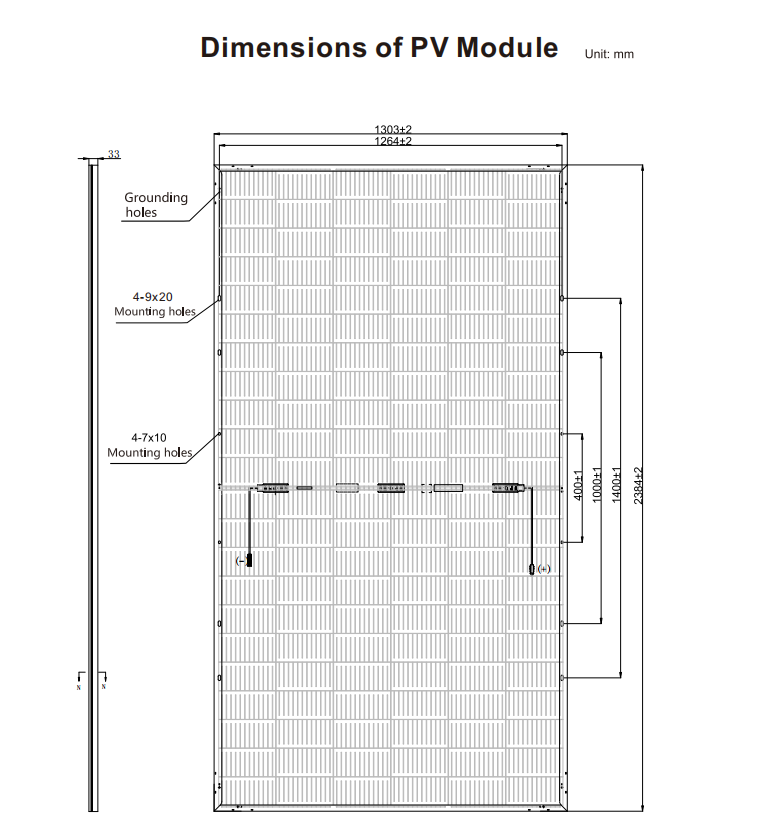

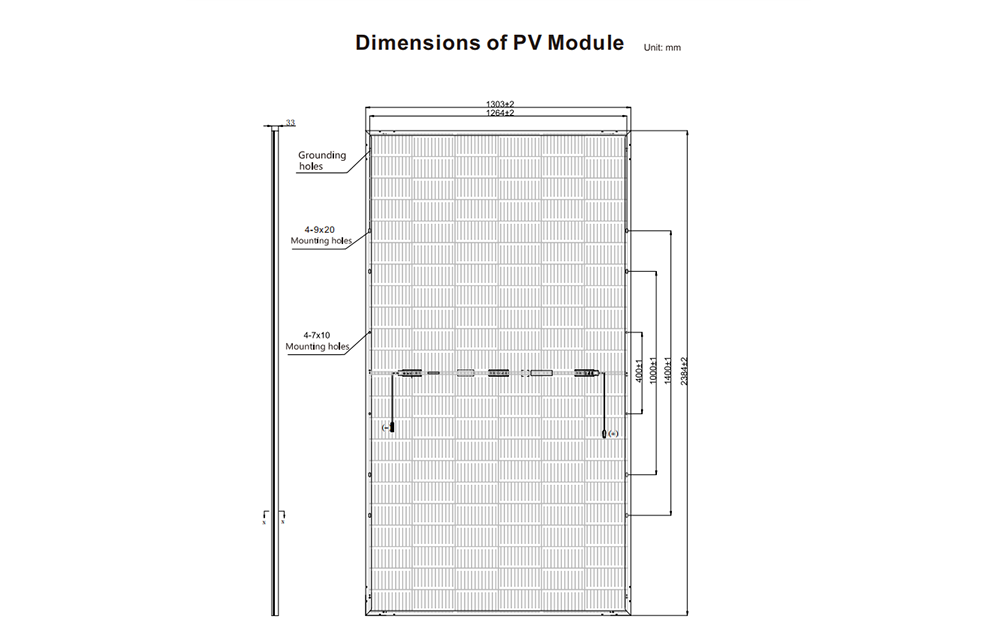

| Package Size | 132.00cm * 112.50cm * 252.00cm |
| Package Gross Weight | 1315.000kg |

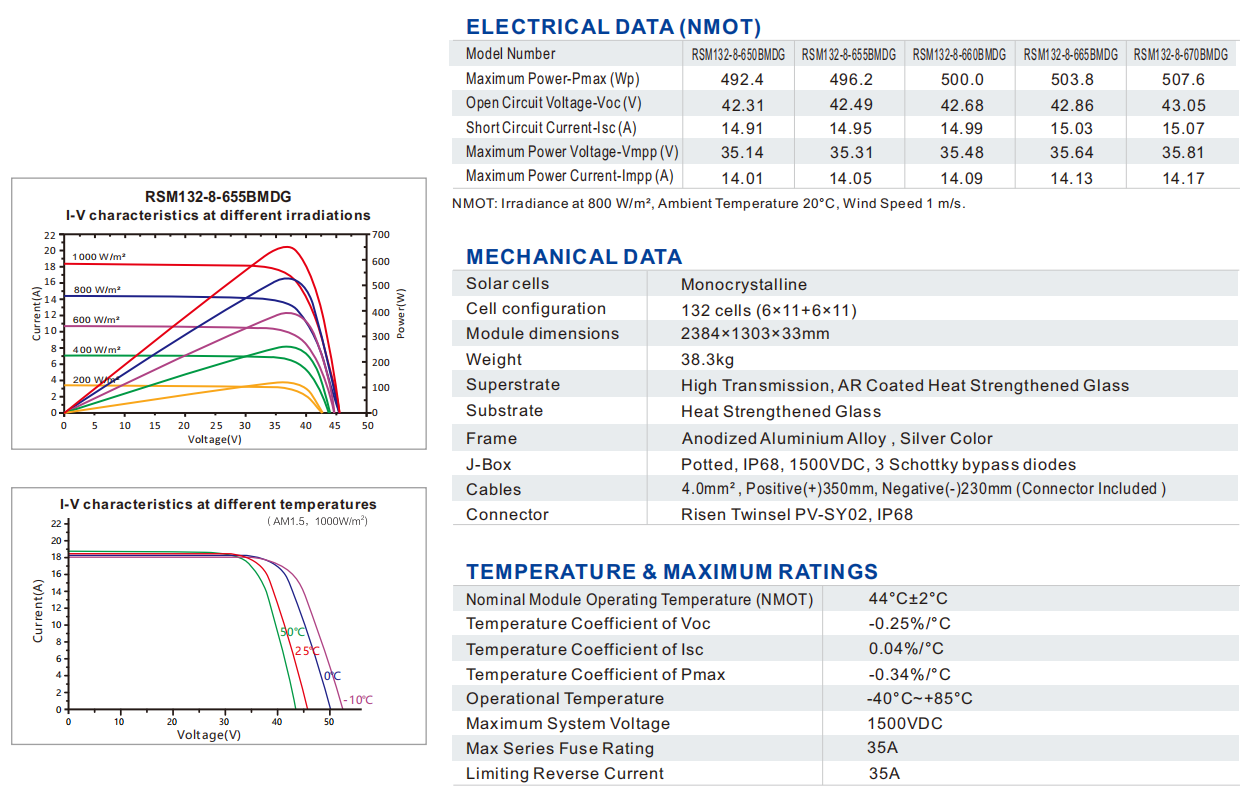

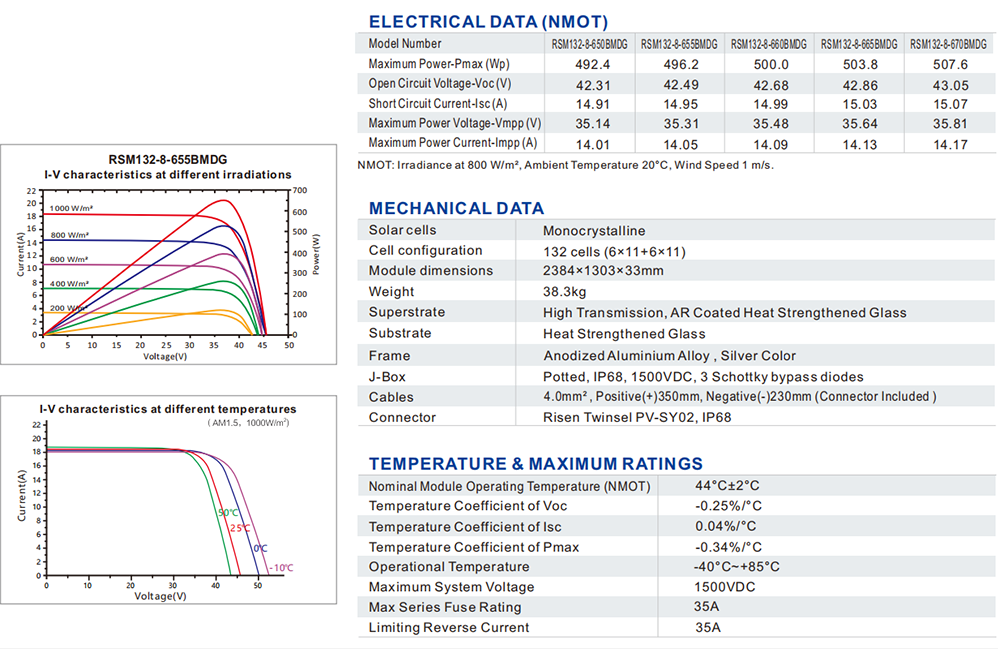

| Model Number | RSM132-8-650BMDG | RSM132-8-655BMDG | RSM132-8-660BMDG | RSM132-8-665BMDG | RSM132-8-670BMDG |
| Rated Power in Watts-Pmax(Wp) | 650 | 655 | 660 | 665 | 670 |
| Open Circuit Voltage-Voc(V) | 45.49 | 45.69 | 45.89 | 46.09 | 46.29 |
| Short Circuit Current-Isc(A) | 18.18 | 18.23 | 18.28 | 18.33 | 18.38 |
| Maximum Power Voltage-Vmpp(V) | 37.87 | 38.05 | 38.23 | 38.41 | 38.59 |
| Maximum Power Current-Impp(A) | 17.17 | 17.22 | 17.27 | 17.32 | 17.37 |
| Module Efficiency (%) | 20.9 | 21.1 | 21.2 | 21.4 | 21.6 |
| STC | Irradiance 1000 W/m², Cell Temperature 25°C, Air Mass AM1.5 according to EN 60904-3. | ||||
Advanced N-type TOPCon Technology
Leverages N-type TOPCon cells to achieve high conversion efficiency and low attenuation rate. Enhances power generation and extends service life.
Bifacial Power Generation
Generates power from both sides, absorbing reflected and scattered light. Provides additional energy gain in various environments such as rooftop and ground installation.
Half-cut Cell Design
Reduces internal current to minimize power loss. Increases output power and reliability while reducing operating temperature.
Double Glass Encapsulation
Glass is used on both sides for excellent transparency, weather resistance and mechanical strength. Protects cells and ensures durability in harsh outdoor conditions.
HJT Cells with TCO Surface
With TCO conductive surface, no insulating layer is required to avoid surface charge accumulation.
Better temperature performance
At 60°C operating temperature, the power output is 4.9% higher than PERC modules.
Increased power output
Due to the use of HJT technology, higher output power can be provided compared to traditional modules.
Extended effective power generation time
Compared with traditional cells, the effective power generation time of HJT cells is extended by 11.07%.
1. What technology does this solar panel use?
The panel uses N-type TOPCon and HJT technology, which has high efficiency and long service life.
2. What is the efficiency and power output of this panel?
The efficiency of this panel is up to 23.1% and the power output is 670W.
3. What are the benefits of double-glass design for the panel?
The double-glass encapsulation protects the cells from harsh conditions and ensures durability.
4. Can this panel generate power from both sides?
Yes, the bifacial design can generate power from both sides, thereby increasing energy yield.
5. What certifications does this solar panel have?
The panel is certified to EST, ISO, CB, and CE standards.
