SKYLARK

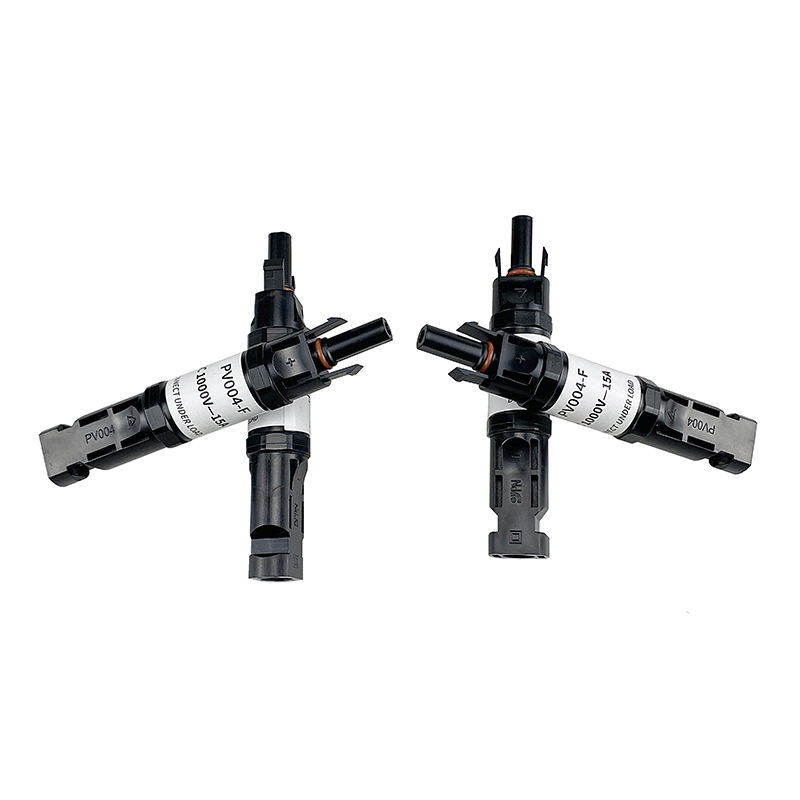

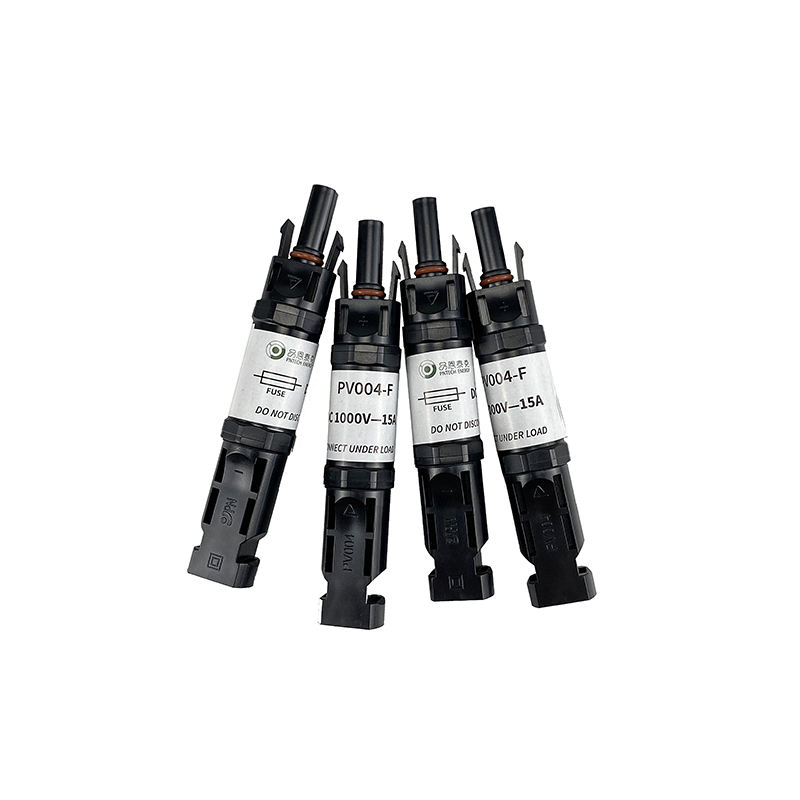

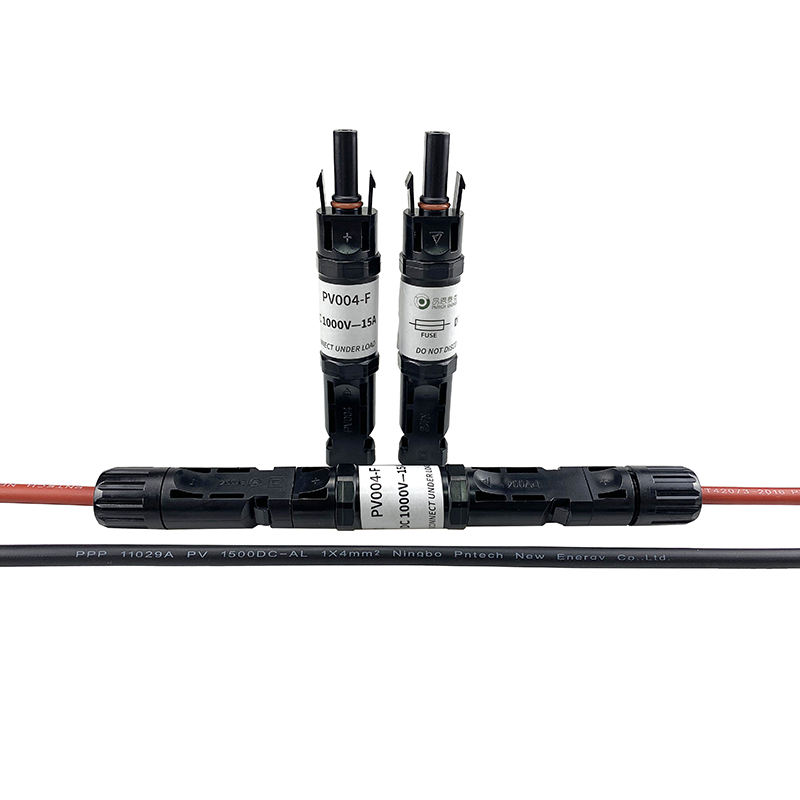

| Type | PV004-F |
| Rated Voltzge | 1000V DC |
| Rated Current | 10A 15A 20A |
| Standard | IEC 62852:2014 |
| Protection Degree | IP65 |
| Contact Resistance | ≤0.5mΩ |
| Pollution Degree | 2 |
| Ambient Temperature | -40ºC~+ 85ºC |
| Insulation Material | PPO |
| Flame Class | UL94 V-0 |
| Contact Materials | Tin Plated Copper |
Waterproof Protection
Rated to IP67, ensuring stable performance in adverse weather conditions.
Safe Plug-In Design
Keyed housing design enhances safety during connector operation.
Durable Plug-In Cycles
Designed to support multiple plug-in and pull-out cycles for long-term use.
High Current Capacity
Handles high current, suitable for large solar systems.
Certified Quality
TUV and UL certified, ensuring product reliability and safety.

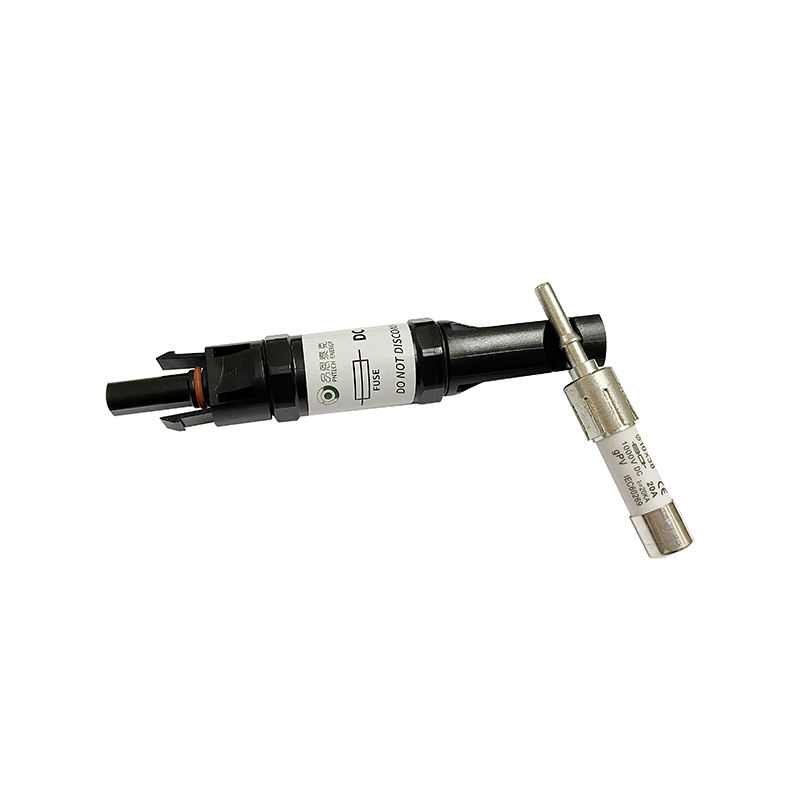

Reliable Overcurrent Protection
Prevents damage to solar panel systems by interrupting excessive current.
Waterproof and Durable
IP67 rating ensures protection against water and environmental factors.
Easy to Install
Compatible with standard PV cables, ensuring quick and secure connections.
High Conductivity
Silver-plated copper contacts reduce energy loss during transmission.
High Temperature Resistance
Operates effectively in temperatures from -40°C to +90°C.
Certified Safety Standards
TUV and UL certifications ensure compliance with international safety standards.
Solar Photovoltaic Power Systems
For residential, commercial, and industrial solar installations.
Off-Grid Solar Systems
Provide safe and reliable connections for off-grid power solutions.
Solar Farms
Support high-power systems in large solar farms.
Battery Energy Storage Systems
Connect solar panels to battery energy storage systems for energy management.
RV and Marine Solar Systems
Ensure stable performance of mobile and marine solar installations.
1. What is the rated current of this product?
The connector supports a rated current of 30A.
2. What is the voltage range it supports?
It is designed to handle 1000V to 1500V.
3. What is the waterproof rating of the connector?
It is IP67 waterproof and suitable for outdoor use.
4. What cable sizes are compatible with this connector?
It supports 2.5mm², 4mm², and 6mm² cables (AWG14/12/10).
5. What certifications does this product have?
This product is certified by TUV and UL for safety and quality.
