| Quantity: | |
|---|---|

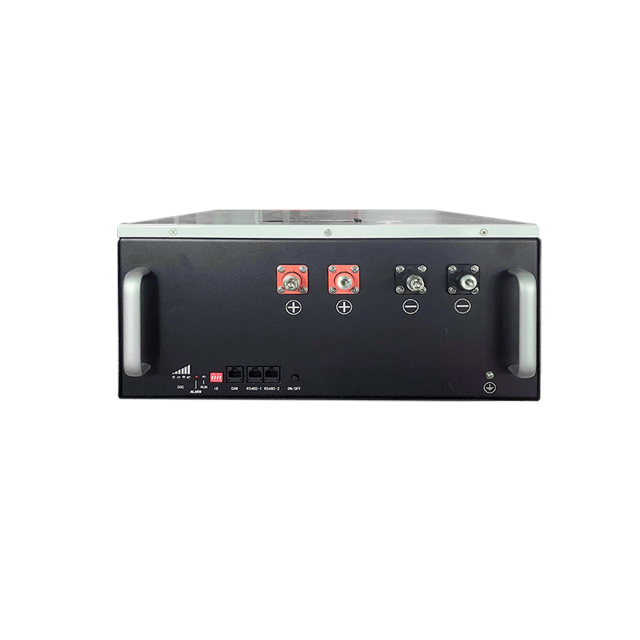

Model | GBP24V-100AH | GBP24V-200AH |
Nominal volt（V） | 24 | |
Nominal capacity（AH） | 100(2.5KWH) | 200(5KWH) |
Working volt range (V) | 22.8-30 | |
Recommend charging volt（V） | 28 | |
Recommend discharging cutoff volt（V） | 23.2 | |
Standard charging current(A) | 25 | 50 |
Max. Constant charging current(A) | 50 | 100 |
Standard discharging current（A） | 25 | 50 |
Max. Discharging current（A） | 50 | 100 |
Temperature（℃） | -30℃～60℃(Recommend 10℃～35℃) | |
Allowable humidity range | 0～85% RH | |
Storage temperature（℃） | -20℃～65℃(Recommend 10℃～35℃) | |
Protection | IP20 | |
Cooling method | Natural air cooling | |
Maximum Dimension(W*D*H) mm | 483*500*175 | |
Remark | 0.5C Discharge Max: 1C, 80% DOD | |
Parallel function | 24v support at most support 20 packs in paralle use(Capacity is 100kwh) | |
Net Weight | 30KG | 57KG |
Battery Cell | A Grade Prismatic Cell | |
Protection | Built-in Smart BMS | |
Reliable power backup: Provides reliable power backup for modern routers. Ensures continuous operation during power outages or voltage fluctuations.
Multi-voltage support: Provides POE (Power over Ethernet) output. Supports a variety of DC voltages (5V/9V/12V/15V/24V), making it compatible with many devices.
Long battery life: Features 8000mAh battery capacity and 2000mAh × 4 battery configuration. Can provide up to 18Wh of energy for long-term use.
Durable and compact design: Weighs only 0.4kg and measures 160×105×28mm. Small and lightweight, it is perfect for placement in a home office or workstation.
User-friendly interface: Equipped with a digital LCD screen to display UPS status. Allows easy monitoring of performance and maintenance notifications. The battery comes with a one-year warranty.
Compact Design: Equipped with LCD screen, easy-to-setup buttons, Bluetooth mobile monitoring, and includes all necessary cables and accessories. OEM customization is available, including customer logo printing.
Wide Application: Rosen Li-ion storage series is widely used in residential and commercial solar systems. With over 6000 deep cycles, up to 90% depth of discharge, and LiFePO4 batteries, it is recognized worldwide. The Powerwall design is patented and Rosen has exclusive sales rights.
Integrated Functionality: Rosen Powerwall can be installed in parallel with a combiner box for added protection. Its built-in BMS communication protocol is compatible with a variety of hybrid and off-grid inverters.
What is the lifespan of a 24V LiFePO4 battery?
24V LiFePO4 batteries typically last over 6,000 deep charge cycles, ensuring long-term durability.
Can this battery be used in residential and commercial solar systems?
Yes, 24V LiFePO4 batteries are suitable for residential and commercial solar applications.
How long does it take to charge the battery?
Charging time depends on the solar system setup and the charger used, but is typically between 4 and 8 hours.
What is the warranty on the battery?
Our 24V LiFePO4 batteries come with a 5-year warranty.
Are there any safety features built into the battery?
Yes, the battery includes short circuit protection and overcharge/overdischarge protection for added safety.
