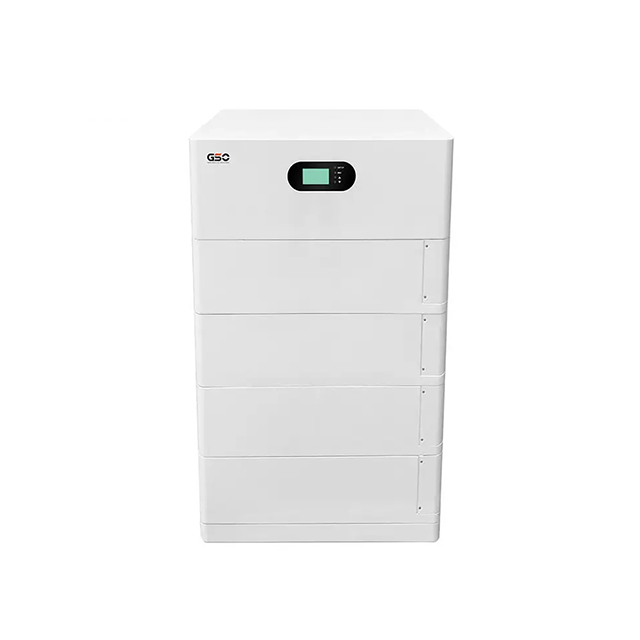

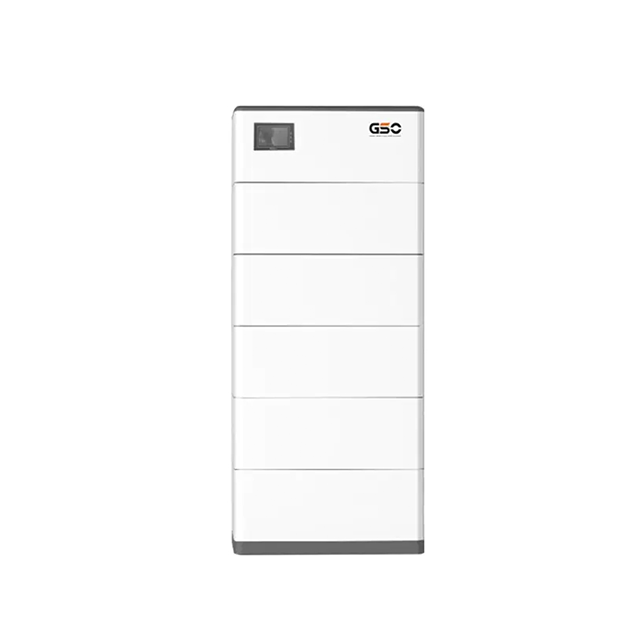

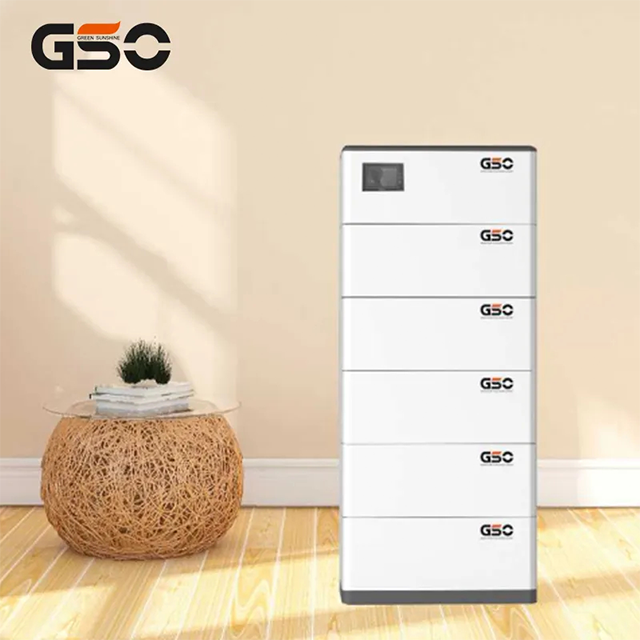

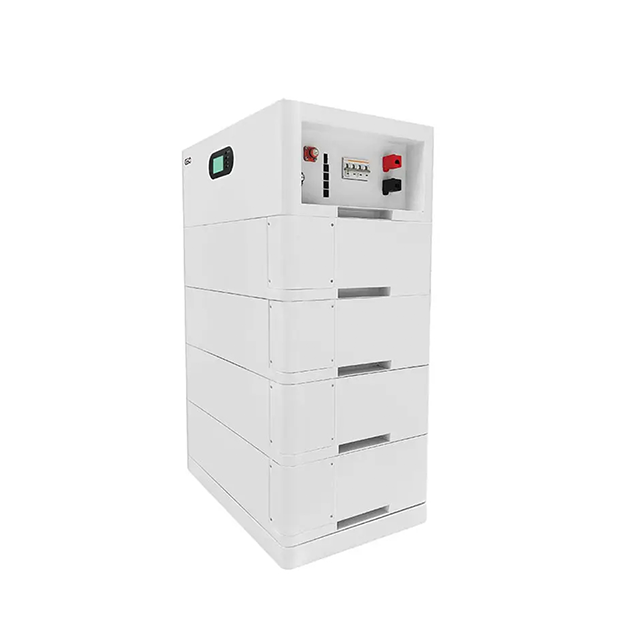

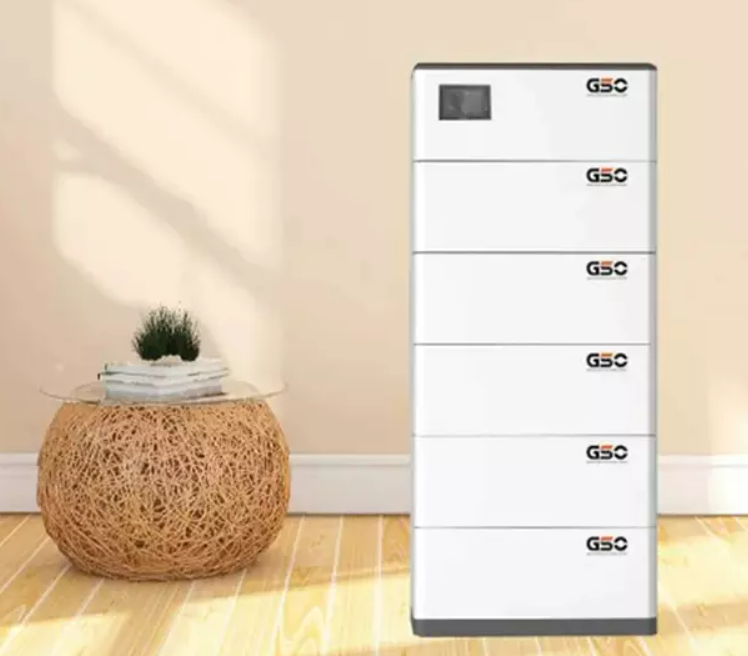

New Stack Series 5kwh 10kwh 15kwh 20kwh stacked lithium ion battery energy storage battery For Energy Storage System

Battery Type

Lithium iron phosphate

Cell capacity

100Ah

Battery module

4.992kWh

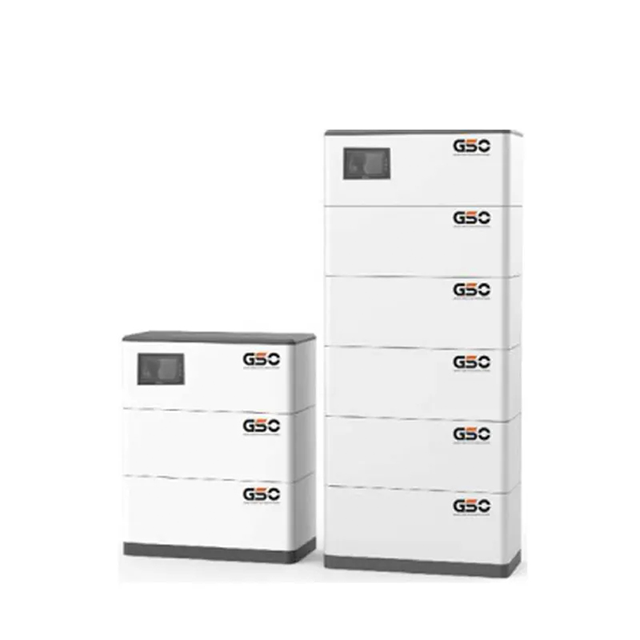

Stacking capacity

9.984kWh

14.97kWh

19.976kWh

24.96kWh

Battery quantity

2 pcs

3 pcs

4 pcs

5 pcs

Dimensions (WxDxHmm)

630x425x620

630x425x800

630x425x980

630x425x1160

Weight

122Kg

172Kg

222Kg

272Kg

Depth of discharge

95%

Rated voltage

48V

Working voltage range

40~52.5V

Maximum charge/discharge current

50A

Battery module weight

50Kg

Battery module size (WxDxHmm)

630x425x180

Communication method

CAN,485

Operating temperature

-10°C-55°C

Storage temperature

-10°C-55°C

Humidity

<95% (non-condensing)

Altitude

< 2000m

Degree of protection

IP20

Cooling method

Natural cooling

Cycles

>5000*

Safety standard

CE,UN38.3,MSDS
