SKYLARK

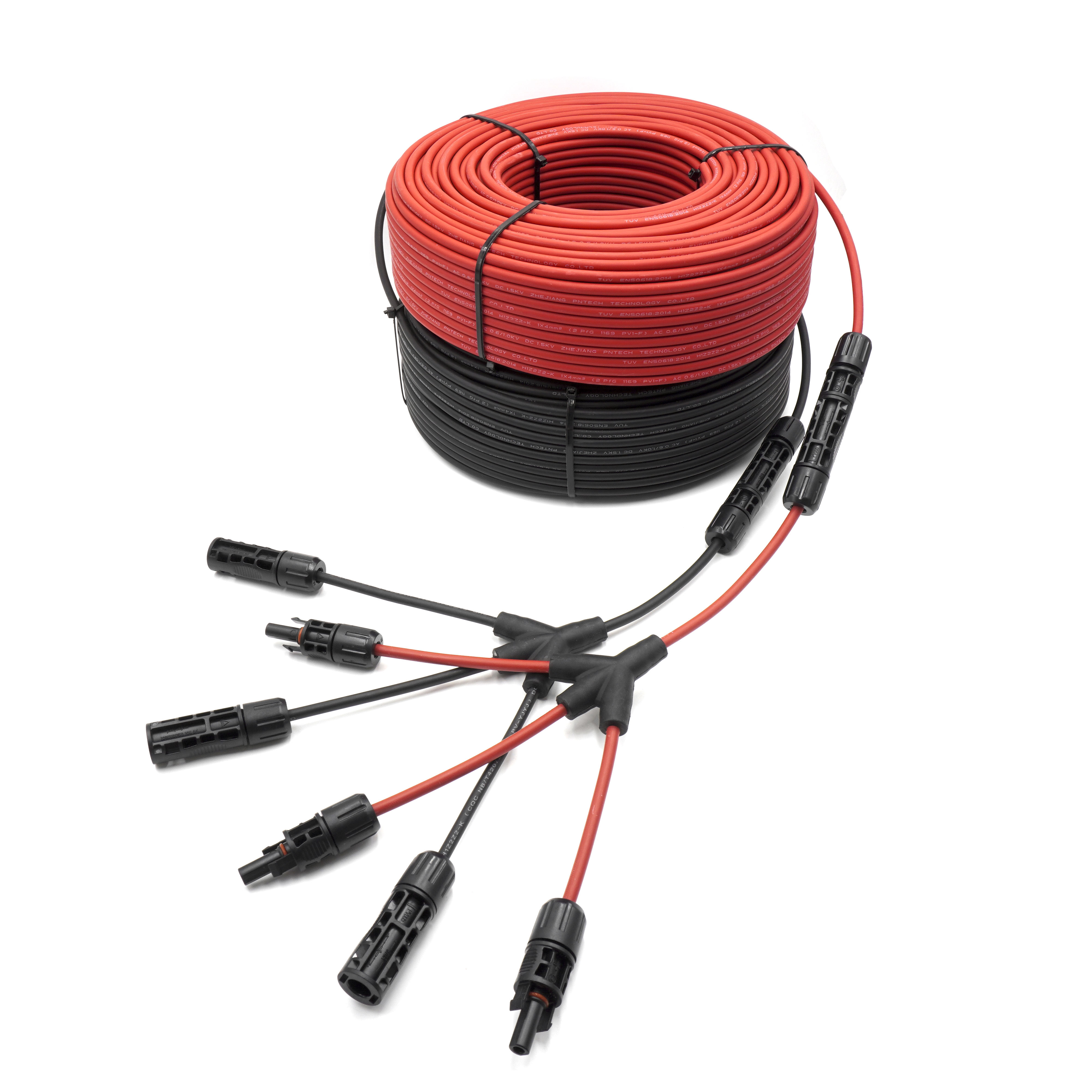

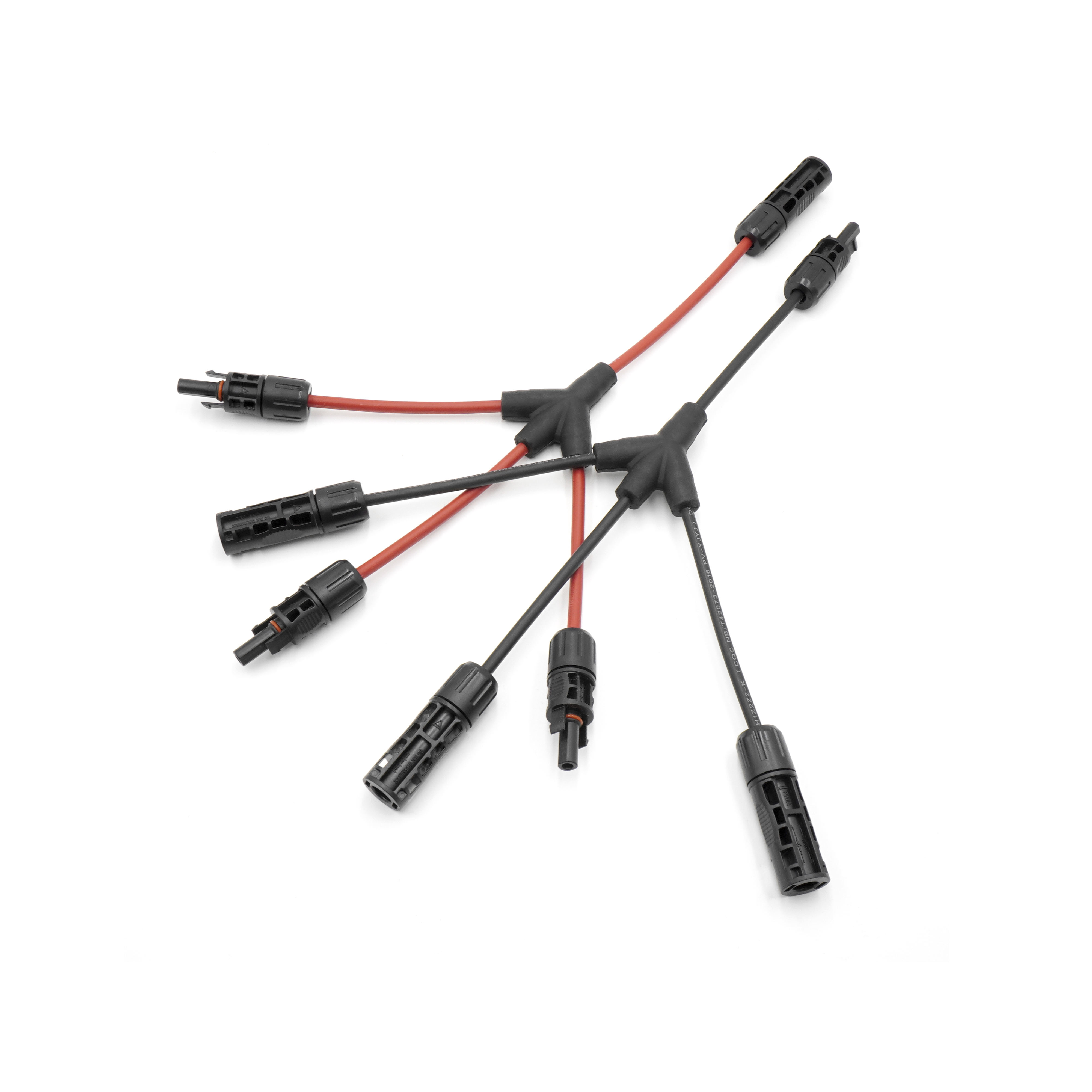

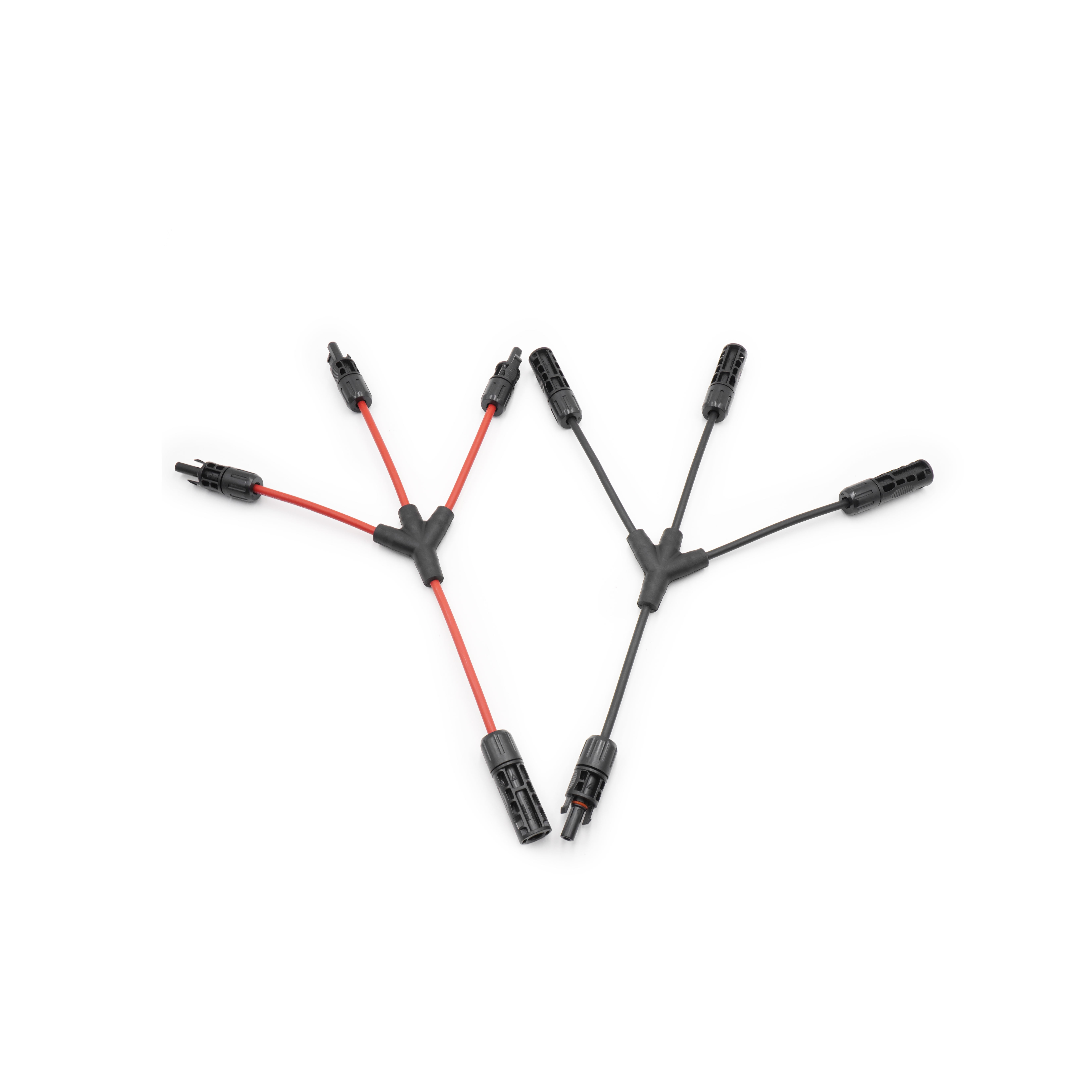

| Type | PV005-3T1 |
| Rated Voltzge | 1500V DC |
| Rated Current | 30A |
| Protection Degree | IP65 |
| Contact Resistance | ≤0.5mΩ |
| Ambient Temperature | -40ºC~+ 90ºC |
| Insulation Material | PV40Z/XLPO |
| Flame Class | UL94 V-0 |
| Input Cable | PV Cable 1×4mm² |
| Output Cable | PV Cable 1×4mm² |
Waterproof
Designed to be completely waterproof, this connector is ideal for outdoor solar installations.
High Temperature Resistant
It can withstand high temperatures and has an operating range of -40°C to +105°C.
Flame Retardant
The materials used are flame retardant, ensuring safety in the event of electrical failure or overheating.
Versatile Applications
Suitable for a variety of electrical products, including lighting systems, control panels, and early warning systems.
Durable Construction
Made of high-quality nylon and PA66/copper for long-lasting performance and wear resistance.
Reliable Power Distribution
Designed specifically for solar applications, it ensures stable and safe power transmission for photovoltaic systems.
Environmentally friendly materials
Made of high-quality environmentally friendly PPO material to ensure durability and safety.
Flame retardant and heat resistant
The connector is designed to withstand high temperatures and is flame retardant.
Waterproof and moisture resistant
Equipped with a high-strength waterproof seal to prevent damage caused by rain and moisture.
Self-locking design
The plug and socket have a self-locking mechanism to ensure safe use.
Durable and low maintenance cost
Durable, reducing the need for frequent maintenance and providing long-term reliability.
Easy outdoor operation
Allows simple connection and disconnection outdoors with a safe load-bearing capacity.
Double shock protection
Adopts a double protection design to prevent electric shock and ensure user safety.
What is the voltage rating of the 1500V 3 To1Y PV Branch Connector?
This connector is rated for 1500V and is suitable for high voltage solar applications.
What materials are used in the construction of the connector?
It is made of durable nylon and PA66/copper, ensuring strength and reliability.
Can this connector be used in outdoor conditions?
Yes, it is rated IP68 and IP67, providing dust and water protection for outdoor use.
What is the temperature range of the 1500V 3 To1Y PV Branch Connector?
The connector can operate in temperatures ranging from -40°C to +105°C.
Is this connector suitable for solar energy systems?
Yes, it is designed for solar applications to ensure reliable power distribution.
